80法兰大功率低压直流伺服电机 (可选抱闸 / 支持多功率转速配置) - EC80TM
所属系列：EC80TM
EC80TM 系列是一款高性能 80 法兰低压直流永磁同步（PMSM）伺服电机。产品采用中惯量与高功率密度设计，在保持机身紧凑的同时，大幅提升了拖动负载的能力。凭借卓越的电磁工艺，电机低速转矩脉动极小，高速运转平稳低噪，且具备出色的抗过载能力。全系提供 100W-1500W 宽功率、DC 24V-180V 宽电压及可选抱闸配置，更支持定制低温特种机型，最高转速达 3000rpm。可完美适配 EtherCAT、CANopen、Modbus-TCP 等主流总线驱动器，是大负载、宽温域低压工控场景的理想动力核心。
系列概要特性
• 80法兰系列
• 大功率输出
• 规格丰富
• 支持高性能驱动器控制器配套
技术参数
电机电气参数
| 电机类型 | 永磁伺服（ABI 增量编码器） |
| 额定电压 | 80 V |
| 输出功率 | 600 W |
| 电机反馈类型 | 差分ABZ(光编) |
| 电机编码器分辨率 | 2500 CPR |
| 抱闸选项 | 已集成 |
| 额定电流 | 8.3 A |
| 峰值电流 | 16.6 A |
| 极数 | 20 |
| 反电势系数 | 13.8 |
| 绝缘等级 | F级 |
机械与动力特性
| 电机法兰 | 80 mm |
| 英制代码 | NEMA 42 |
| 额定扭矩 | 1.9 N.m |
| 额定转速 | 3000 rpm |
| 转动惯量 | 1280 g・cm² |
| 电机高度 | 120 mm |
| 电机防护等级 | IP65 |
电机接口与安装规范
| 电机动力接口形态 | 直接引出线 |
| 电机编码器接口形态 | 连接器 |
| 电机编码器连接器型号 | DB15M |
| 电机制动器接口形态 | 直接引出线 |
| 轴长度（电机输出轴） | 35 mm |
| 轴直径（电机输出轴） | 19 mm |
| 凸台高度 | 3 mm |
| 凸台直径 | 70 mm |
| 安装孔位 | 90 mm |
| 安装孔类型 | 通孔 |
| 安装孔尺寸 | 7 mm |

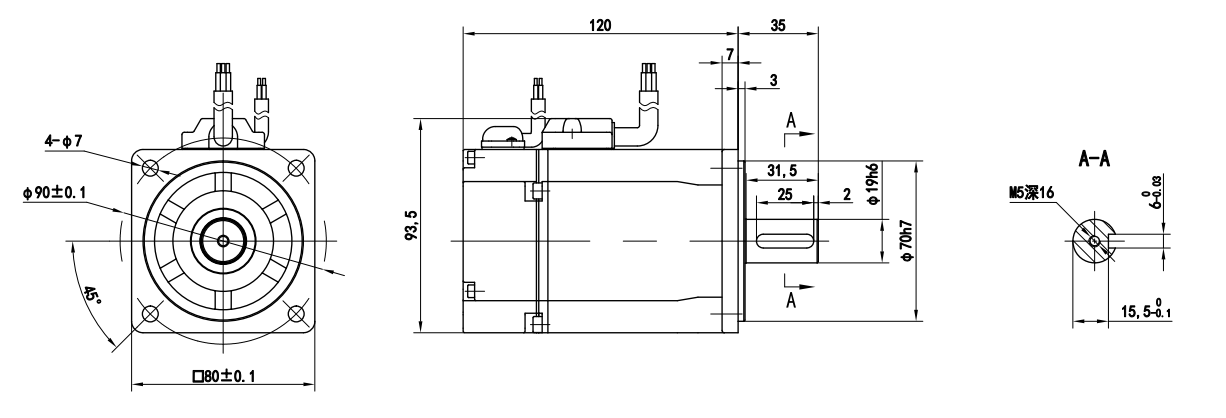

尺寸图
3D 预览
- 查看本系列全部 188 款规格型号 (选型参数表)
型号 (SKU) 配置概述 EC80TM110301000-E 110V直流低压伺服电机转速300转功率1000W-EC80TM110301000-E EC80TM110301000-EB 110V直流低压伺服电机转速300转功率1000W抱闸制动器-EC80TM110301000-EB EC80TM11030750-E 110V直流低压伺服电机转速300转功率750W-EC80TM11030750-E EC80TM11030750-EB 110V直流低压伺服电机转速300转功率750W抱闸制动器-EC80TM11030750-EB EC80TM120301250-E 120V直流低压伺服电机转速300转功率1250W-EC80TM120301250-E EC80TM120301250-EB 120V直流低压伺服电机转速300转功率1250W抱闸制动器-EC80TM120301250-EB EC80TM15030400-EB 150V直流低压伺服电机转速300转功率400W抱闸制动器-EC80TM15030400-EB EC80TM18010400-E 180V直流低压伺服电机转速100转功率400W-EC80TM18010400-E EC80TM2420400-HEB 24V直流低压伺服电机功率400W光编抱闸制动器-EC80TM2420400-HEB EC80TM2420400-EB 24V直流低压伺服电机功率400W磁编抱闸制动器-EC80TM2420400-EB EC80TM2410400-E 24V直流低压伺服电机转速1000转功率400W-EC80TM2410400-E EC80TM2410400-EB 24V直流低压伺服电机转速1000转功率400W抱闸制动器-EC80TM2410400-EB EC80TM2410500-E 24V直流低压伺服电机转速1000转功率500W-EC80TM2410500-E EC80TM2410500-EB 24V直流低压伺服电机转速1000转功率500W抱闸制动器-EC80TM2410500-EB EC80TM2410600-E 24V直流低压伺服电机转速1000转功率600W-EC80TM2410600-E EC80TM2415200-EB 24V直流低压伺服电机转速1500转功率200W抱闸制动器-EC80TM2415200-EB EC80TM2415300-E 24V直流低压伺服电机转速1500转功率300W-EC80TM2415300-E EC80TM2415400-E 24V直流低压伺服电机转速1500转功率400W-EC80TM2415400-E EC80TM2415400-EB 24V直流低压伺服电机转速1500转功率400W抱闸制动器-EC80TM2415400-EB EC80TM2415500-E 24V直流低压伺服电机转速1500转功率500W-EC80TM2415500-E EC80TM2415500-EB 24V直流低压伺服电机转速1500转功率500W抱闸制动器-EC80TM2415500-EB EC80TM2415750-E 24V直流低压伺服电机转速1500转功率750W-EC80TM2415750-E EC80TM2415750-EB 24V直流低压伺服电机转速1500转功率750W抱闸制动器-EC80TM2415750-EB EC80TM2420500-E 24V直流低压伺服电机转速2000转功率500W-EC80TM2420500-E EC80TM2420500-EB 24V直流低压伺服电机转速2000转功率500W抱闸制动器-EC80TM2420500-EB EC80TM2420600-E 24V直流低压伺服电机转速2000转功率600W-EC80TM2420600-E EC80TM2420600-EB 24V直流低压伺服电机转速2000转功率600W抱闸制动器-EC80TM2420600-EB EC80TM2420750-E 24V直流低压伺服电机转速2000转功率750W-EC80TM2420750-E EC80TM2420750-EB 24V直流低压伺服电机转速2000转功率750W抱闸制动器-EC80TM2420750-EB EC80TM2425500-EB 24V直流低压伺服电机转速2500转功率500W抱闸制动器-EC80TM2425500-EB EC80TM24301000-E 24V直流低压伺服电机转速3000转功率1000W-EC80TM24301000-E EC80TM24301000-EB 24V直流低压伺服电机转速3000转功率1000W抱闸制动器-EC80TM24301000-EB EC80TM2430200-EB 24V直流低压伺服电机转速3000转功率200W抱闸制动器-EC80TM2430200-EB EC80TM2430400-EB 24V直流低压伺服电机转速3000转功率400W抱闸制动器-EC80TM2430400-EB EC80TM2430500P10-E 24V直流低压伺服电机转速3000转功率500W-EC80TM2430500P10-E EC80TM2430500P5-E 24V直流低压伺服电机转速3000转功率500W-EC80TM2430500P5-E EC80TM2430500P10-EB 24V直流低压伺服电机转速3000转功率500W抱闸制动器-EC80TM2430500P10-EB EC80TM2430500P5-EB 24V直流低压伺服电机转速3000转功率500W抱闸制动器-EC80TM2430500P5-EB EC80TM2430600-E 24V直流低压伺服电机转速3000转功率600W-EC80TM2430600-E EC80TM2430600-EB 24V直流低压伺服电机转速3000转功率600W抱闸制动器-EC80TM2430600-EB EC80TM2430750P10-E 24V直流低压伺服电机转速3000转功率750W-EC80TM2430750P10-E EC80TM2430750P5-E 24V直流低压伺服电机转速3000转功率750W-EC80TM2430750P5-E EC80TM2430750P10-EB 24V直流低压伺服电机转速3000转功率750W抱闸制动器-EC80TM2430750P10-EB EC80TM2430750P5-EB 24V直流低压伺服电机转速3000转功率750W抱闸制动器-EC80TM2430750P5-EB EC80TM2430800-E 24V直流低压伺服电机转速3000转功率800W-EC80TM2430800-E EC80TM2430950-E 24V直流低压伺服电机转速3000转功率950W-EC80TM2430950-E EC80TM2406200-E 24V直流低压伺服电机转速600转功率200W-EC80TM2406200-E EC80TM3615750-E 36V直流低压伺服电机转速1500转功率750W-EC80TM3615750-E EC80TM36301000-E 36V直流低压伺服电机转速3000转功率1000W-EC80TM36301000-E EC80TM36301000-EB 36V直流低压伺服电机转速3000转功率1000W抱闸制动器-EC80TM36301000-EB EC80TM3630400-EB 36V直流低压伺服电机转速3000转功率400W抱闸制动器-EC80TM3630400-EB EC80TM3630750-E 36V直流低压伺服电机转速3000转功率750W-EC80TM3630750-E EC80TM4830750P5-E-LT 48V直流低压伺服低温版本电机转速3000转功率750W-EC80TM4830750P5-E-LT EC80TM4810100-EB 48V直流低压伺服电机转速1000转功率100W抱闸制动器-EC80TM4810100-EB EC80TM4810400-E 48V直流低压伺服电机转速1000转功率400W-EC80TM4810400-E EC80TM4810400-EB 48V直流低压伺服电机转速1000转功率400W抱闸制动器-EC80TM4810400-EB EC80TM4810420-EB 48V直流低压伺服电机转速1000转功率420W抱闸制动器-EC80TM4810420-EB EC80TM4810500-E 48V直流低压伺服电机转速1000转功率500W-EC80TM4810500-E EC80TM4810500-EB 48V直流低压伺服电机转速1000转功率500W抱闸制动器-EC80TM4810500-EB EC80TM4815200-EB 48V直流低压伺服电机转速1500转功率200W抱闸制动器-EC80TM4815200-EB EC80TM4815400-E 48V直流低压伺服电机转速1500转功率400W-EC80TM4815400-E EC80TM4815400-EB 48V直流低压伺服电机转速1500转功率400W抱闸制动器-EC80TM4815400-EB EC80TM4815500-E 48V直流低压伺服电机转速1500转功率500W-EC80TM4815500-E EC80TM4815500-EB 48V直流低压伺服电机转速1500转功率500W抱闸制动器-EC80TM4815500-EB EC80TM4815600-E 48V直流低压伺服电机转速1500转功率600W-EC80TM4815600-E EC80TM4815600-EB 48V直流低压伺服电机转速1500转功率600W抱闸制动器-EC80TM4815600-EB EC80TM4815620-EB 48V直流低压伺服电机转速1500转功率620W抱闸制动器-EC80TM4815620-EB EC80TM4815750-E 48V直流低压伺服电机转速1500转功率750W-EC80TM4815750-E EC80TM4815750-EB 48V直流低压伺服电机转速1500转功率750W抱闸制动器-EC80TM4815750-EB EC80TM4815800-E 48V直流低压伺服电机转速1500转功率800W-EC80TM4815800-E EC80TM4818750-E 48V直流低压伺服电机转速1800转功率750W-EC80TM4818750-E EC80TM4818750-EB 48V直流低压伺服电机转速1800转功率750W抱闸制动器-EC80TM4818750-EB EC80TM48201000-E 48V直流低压伺服电机转速2000转功率1000W-EC80TM48201000-E EC80TM48201000-EB 48V直流低压伺服电机转速2000转功率1000W抱闸制动器-EC80TM48201000-EB EC80TM4820200-EB 48V直流低压伺服电机转速2000转功率200W抱闸制动器-EC80TM4820200-EB EC80TM4820400-EB 48V直流低压伺服电机转速2000转功率400W抱闸制动器-EC80TM4820400-EB EC80TM4820500-E 48V直流低压伺服电机转速2000转功率500W-EC80TM4820500-E EC80TM4820500-EB 48V直流低压伺服电机转速2000转功率500W抱闸制动器-EC80TM4820500-EB EC80TM4820600-E 48V直流低压伺服电机转速2000转功率600W-EC80TM4820600-E EC80TM4820600-EB 48V直流低压伺服电机转速2000转功率600W抱闸制动器-EC80TM4820600-EB EC80TM4820750-E 48V直流低压伺服电机转速2000转功率750W-EC80TM4820750-E EC80TM4820750-EB 48V直流低压伺服电机转速2000转功率750W抱闸制动器-EC80TM4820750-EB EC80TM4820850-E 48V直流低压伺服电机转速2000转功率850W-EC80TM4820850-E EC80TM4820850-EB 48V直流低压伺服电机转速2000转功率850W抱闸制动器-EC80TM4820850-EB EC80TM4820900-E 48V直流低压伺服电机转速2000转功率900W-EC80TM4820900-E EC80TM48028164-E 48V直流低压伺服电机转速200转功率164W-EC80TM48028164-E EC80TM48251000-E 48V直流低压伺服电机转速2500转功率1000W-EC80TM48251000-E EC80TM48251000-EB 48V直流低压伺服电机转速2500转功率1000W抱闸制动器-EC80TM48251000-EB EC80TM48251250-E 48V直流低压伺服电机转速2500转功率1250W-EC80TM48251250-E EC80TM48251250-EB 48V直流低压伺服电机转速2500转功率1250W抱闸制动器-EC80TM48251250-EB EC80TM4825600-E 48V直流低压伺服电机转速2500转功率600W-EC80TM4825600-E EC80TM4825600-EB 48V直流低压伺服电机转速2500转功率600W抱闸制动器-EC80TM4825600-EB EC80TM4825780-E 48V直流低压伺服电机转速2500转功率780W-EC80TM4825780-E EC80TM4825780-EB 48V直流低压伺服电机转速2500转功率780W抱闸制动器-EC80TM4825780-EB EC80TM48301000P10-E 48V直流低压伺服电机转速3000转功率1000W-EC80TM48301000P10-E EC80TM48301000P5-E 48V直流低压伺服电机转速3000转功率1000W-EC80TM48301000P5-E EC80TM48301000P10-EB 48V直流低压伺服电机转速3000转功率1000W抱闸制动器-EC80TM48301000P10-EB EC80TM48301000P5-EB 48V直流低压伺服电机转速3000转功率1000W抱闸制动器-EC80TM48301000P5-EB EC80TM48301250-E 48V直流低压伺服电机转速3000转功率1250W-EC80TM48301250-E EC80TM48301250-EB 48V直流低压伺服电机转速3000转功率1250W抱闸制动器-EC80TM48301250-EB EC80TM48301500-E 48V直流低压伺服电机转速3000转功率1500W-EC80TM48301500-E EC80TM48301500-EB 48V直流低压伺服电机转速3000转功率1500W抱闸制动器-EC80TM48301500-EB EC80TM4830200-EB 48V直流低压伺服电机转速3000转功率200W抱闸制动器-EC80TM4830200-EB EC80TM4830400-E 48V直流低压伺服电机转速3000转功率400W-EC80TM4830400-E EC80TM4830400-EB 48V直流低压伺服电机转速3000转功率400W抱闸制动器-EC80TM4830400-EB EC80TM4830500-EB 48V直流低压伺服电机转速3000转功率500W抱闸制动器-EC80TM4830500-EB EC80TM4830600P10-E 48V直流低压伺服电机转速3000转功率600W-EC80TM4830600P10-E EC80TM4830600P5-E 48V直流低压伺服电机转速3000转功率600W-EC80TM4830600P5-E EC80TM4830600P10-EB 48V直流低压伺服电机转速3000转功率600W抱闸制动器-EC80TM4830600P10-EB EC80TM4830600P5-EB 48V直流低压伺服电机转速3000转功率600W抱闸制动器-EC80TM4830600P5-EB EC80TM4830620-E 48V直流低压伺服电机转速3000转功率620W-EC80TM4830620-E EC80TM4830750P10-E 48V直流低压伺服电机转速3000转功率750W-EC80TM4830750P10-E EC80TM4830750P5-E 48V直流低压伺服电机转速3000转功率750W-EC80TM4830750P5-E EC80TM4830750P10-EB 48V直流低压伺服电机转速3000转功率750W抱闸制动器-EC80TM4830750P10-EB EC80TM4830750P5-EB 48V直流低压伺服电机转速3000转功率750W抱闸制动器-EC80TM4830750P5-EB EC80TM4808336-EB 48V直流低压伺服电机转速800转功率336W抱闸制动器-EC80TM4808336-EB EC80TM60201000-E 60V直流低压伺服电机转速2000转功率1000W-EC80TM60201000-E EC80TM60201000-EB 60V直流低压伺服电机转速2000转功率1000W抱闸制动器-EC80TM60201000-EB EC80TM6020400-EB 60V直流低压伺服电机转速2000转功率400W抱闸制动器-EC80TM6020400-EB EC80TM6020650-E 60V直流低压伺服电机转速2000转功率650W-EC80TM6020650-E EC80TM6020650-EB 60V直流低压伺服电机转速2000转功率650W抱闸制动器-EC80TM6020650-EB EC80TM60251000-E 60V直流低压伺服电机转速2500转功率1000W-EC80TM60251000-E EC80TM60251000-EB 60V直流低压伺服电机转速2500转功率1000W抱闸制动器-EC80TM60251000-EB EC80TM60301000-E 60V直流低压伺服电机转速3000转功率1000W-EC80TM60301000-E EC80TM60301000-EB 60V直流低压伺服电机转速3000转功率1000W抱闸制动器-EC80TM60301000-EB EC80TM60301500-E 60V直流低压伺服电机转速3000转功率1500W-EC80TM60301500-E EC80TM60301500-EB 60V直流低压伺服电机转速3000转功率1500W抱闸制动器-EC80TM60301500-EB EC80TM6030400-EB 60V直流低压伺服电机转速3000转功率400W抱闸制动器-EC80TM6030400-EB EC80TM6030650-E 60V直流低压伺服电机转速3000转功率650W-EC80TM6030650-E EC80TM6030650-EB 60V直流低压伺服电机转速3000转功率650W抱闸制动器-EC80TM6030650-EB EC80TM6030750-E 60V直流低压伺服电机转速3000转功率750W-EC80TM6030750-E EC80TM6030750-EB 60V直流低压伺服电机转速3000转功率750W抱闸制动器-EC80TM6030750-EB EC80TM7215100-EB 72V直流低压伺服电机转速1500转功率100W抱闸制动器-EC80TM7215100-EB EC80TM7215300-E 72V直流低压伺服电机转速1500转功率300W-EC80TM7215300-E EC80TM7215300-EB 72V直流低压伺服电机转速1500转功率300W抱闸制动器-EC80TM7215300-EB EC80TM7215400-E 72V直流低压伺服电机转速1500转功率400W-EC80TM7215400-E EC80TM7215400-EB 72V直流低压伺服电机转速1500转功率400W抱闸制动器-EC80TM7215400-EB EC80TM7215500-E 72V直流低压伺服电机转速1500转功率500W-EC80TM7215500-E EC80TM7215500-EB 72V直流低压伺服电机转速1500转功率500W抱闸制动器-EC80TM7215500-EB EC80TM7215600-E 72V直流低压伺服电机转速1500转功率600W-EC80TM7215600-E EC80TM7215600-EB 72V直流低压伺服电机转速1500转功率600W抱闸制动器-EC80TM7215600-EB EC80TM72201000-E 72V直流低压伺服电机转速2000转功率1000W-EC80TM72201000-E EC80TM72201000-EB 72V直流低压伺服电机转速2000转功率1000W抱闸制动器-EC80TM72201000-EB EC80TM7220500-E 72V直流低压伺服电机转速2000转功率500W-EC80TM7220500-E EC80TM7220500-EB 72V直流低压伺服电机转速2000转功率500W抱闸制动器-EC80TM7220500-EB EC80TM7220700-E 72V直流低压伺服电机转速2000转功率700W-EC80TM7220700-E EC80TM7220700-EB 72V直流低压伺服电机转速2000转功率700W抱闸制动器-EC80TM7220700-EB EC80TM7220750-E 72V直流低压伺服电机转速2000转功率750W-EC80TM7220750-E EC80TM7220750-EB 72V直流低压伺服电机转速2000转功率750W抱闸制动器-EC80TM7220750-EB EC80TM7220850-E 72V直流低压伺服电机转速2000转功率850W-EC80TM7220850-E EC80TM7220850-EB 72V直流低压伺服电机转速2000转功率850W抱闸制动器-EC80TM7220850-EB EC80TM72251000-E 72V直流低压伺服电机转速2500转功率1000W-EC80TM72251000-E EC80TM72251000-EB 72V直流低压伺服电机转速2500转功率1000W抱闸制动器-EC80TM72251000-EB EC80TM72301000-E 72V直流低压伺服电机转速3000转功率1000W-EC80TM72301000-E EC80TM72301000-EB 72V直流低压伺服电机转速3000转功率1000W抱闸制动器-EC80TM72301000-EB EC80TM7230100-EB 72V直流低压伺服电机转速3000转功率100W抱闸制动器-EC80TM7230100-EB EC80TM72301250-E 72V直流低压伺服电机转速3000转功率1250W-EC80TM72301250-E EC80TM72301250-EB 72V直流低压伺服电机转速3000转功率1250W抱闸制动器-EC80TM72301250-EB EC80TM72301500-E 72V直流低压伺服电机转速3000转功率1500W-EC80TM72301500-E EC80TM72301500-EB 72V直流低压伺服电机转速3000转功率1500W抱闸制动器-EC80TM72301500-EB EC80TM7230200-EB 72V直流低压伺服电机转速3000转功率200W抱闸制动器-EC80TM7230200-EB EC80TM7230400-E 72V直流低压伺服电机转速3000转功率400W-EC80TM7230400-E EC80TM7230400-EB 72V直流低压伺服电机转速3000转功率400W抱闸制动器-EC80TM7230400-EB EC80TM7230500-EB 72V直流低压伺服电机转速3000转功率500W抱闸制动器-EC80TM7230500-EB EC80TM7230600-E 72V直流低压伺服电机转速3000转功率600W-EC80TM7230600-E EC80TM7230600-EB 72V直流低压伺服电机转速3000转功率600W抱闸制动器-EC80TM7230600-EB EC80TM7230750-E 72V直流低压伺服电机转速3000转功率750W-EC80TM7230750-E EC80TM7230750-EB 72V直流低压伺服电机转速3000转功率750W抱闸制动器-EC80TM7230750-EB EC80TM8030600-HEB 80V直流低压伺服电机功率600W光编抱闸制动器-EC80TM8030600-HEB EC80TM8030600-EB 80V直流低压伺服电机功率600W磁编抱闸制动器-EC80TM8030600-EB EC80TM80301000-E 80V直流低压伺服电机转速3000转功率1000W-EC80TM80301000-E EC80TM80301000-EB 80V直流低压伺服电机转速3000转功率1000W抱闸制动器-EC80TM80301000-EB EC80TM8030400-EB 80V直流低压伺服电机转速3000转功率400W抱闸制动器-EC80TM8030400-EB EC80TM9615500-E 96V直流低压伺服电机转速1500转功率500W-EC80TM9615500-E EC80TM9615500-EB 96V直流低压伺服电机转速1500转功率500W抱闸制动器-EC80TM9615500-EB EC80TM9620600-E 96V直流低压伺服电机转速2000转功率600W-EC80TM9620600-E EC80TM9620600-EB 96V直流低压伺服电机转速2000转功率600W抱闸制动器-EC80TM9620600-EB EC80TM9620750-E 96V直流低压伺服电机转速2000转功率750W-EC80TM9620750-E EC80TM9620750-EB 96V直流低压伺服电机转速2000转功率750W抱闸制动器-EC80TM9620750-EB EC80TM96301000-E 96V直流低压伺服电机转速3000转功率1000W-EC80TM96301000-E EC80TM96301000-EB 96V直流低压伺服电机转速3000转功率1000W抱闸制动器-EC80TM96301000-EB EC80TM96301250-E 96V直流低压伺服电机转速3000转功率1250W-EC80TM96301250-E EC80TM96301500-E 96V直流低压伺服电机转速3000转功率1500W-EC80TM96301500-E EC80TM96301500-EB 96V直流低压伺服电机转速3000转功率1500W抱闸制动器-EC80TM96301500-EB EC80TM9630400-E 96V直流低压伺服电机转速3000转功率400W-EC80TM9630400-E EC80TM9630400-EB 96V直流低压伺服电机转速3000转功率400W抱闸制动器-EC80TM9630400-EB EC80TM9630750-E 96V直流低压伺服电机转速3000转功率750W-EC80TM9630750-E EC80TM9630750-EB 96V直流低压伺服电机转速3000转功率750W抱闸制动器-EC80TM9630750-EB
规格选项
已选配置：EC80TM8030600-HEB
